Jigsaw

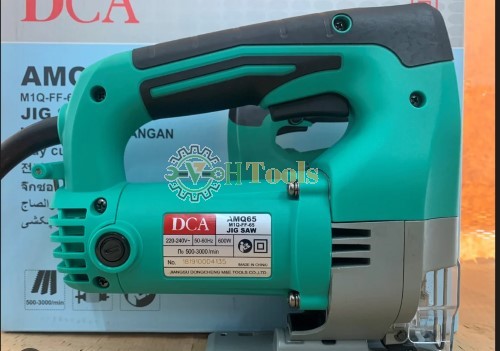

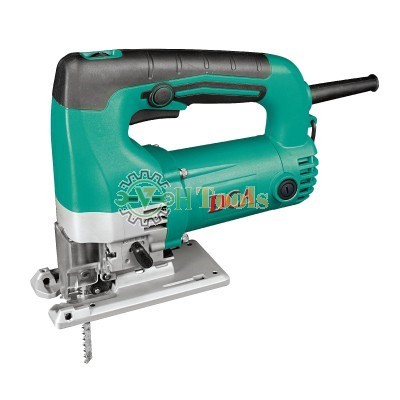

 DCA Jigsaw AMQ65K

A power tool designed for various cutting applications, particularly in woodworking and metalworking. It features a robust motor and several adjustable settings that enhance its versatility and efficiency.

Specifications

1. Rated Power Input: The jigsaw has a rated power input of 600W, which provides sufficient power for cutting through different materials.
2. No-load Strokes: It operates at no-load strokes ranging from 500 to 3000 strokes per minute (spm). This variable speed allows users to adjust the cutting speed according to the material being cut.
3. Bevel Cutting Angle: The jigsaw can perform bevel cuts at angles between 0° to 45°, both left and right. This feature is essential for making angled cuts, which are often required in various projects.
4. Max Cutting Capacity:
   • For wood, the maximum cutting capacity is 65mm.
   • For steel, it can cut up to 10mm thick.
5. Net Weight: The tool weighs approximately 2.5 kg, making it relatively lightweight and easy to handle during operation.

Features

1. High Power Output: With a powerful 600W motor, the jigsaw can handle tough materials effectively.
2. Quick Change Chuck System: This feature allows for easy and fast blade changes without the need for additional tools, enhancing productivity.
3. Straight Cutting + Orbital Settings: The jigsaw offers straight cutting capabilities along with three orbital settings, allowing users to choose the appropriate action based on their cutting needs.
4. 6-Speed Control: Users can select from six different speed settings, providing flexibility when working with various materials.
5. Accessories Included: The package typically includes three saw blades (T144D, T111C, T118A), a hex wrench, an anti-cracking baseplate, a plastic liner panel, and a carbon brush.

Applications

The DCA Jigsaw AMQ65K is suitable for cutting various materials including:

• Wood
• Plastic
• Rubber
• Leather
• Asbestos
• Cement
• Metal

This versatility makes it an excellent choice for both DIY enthusiasts and professionals alike.
