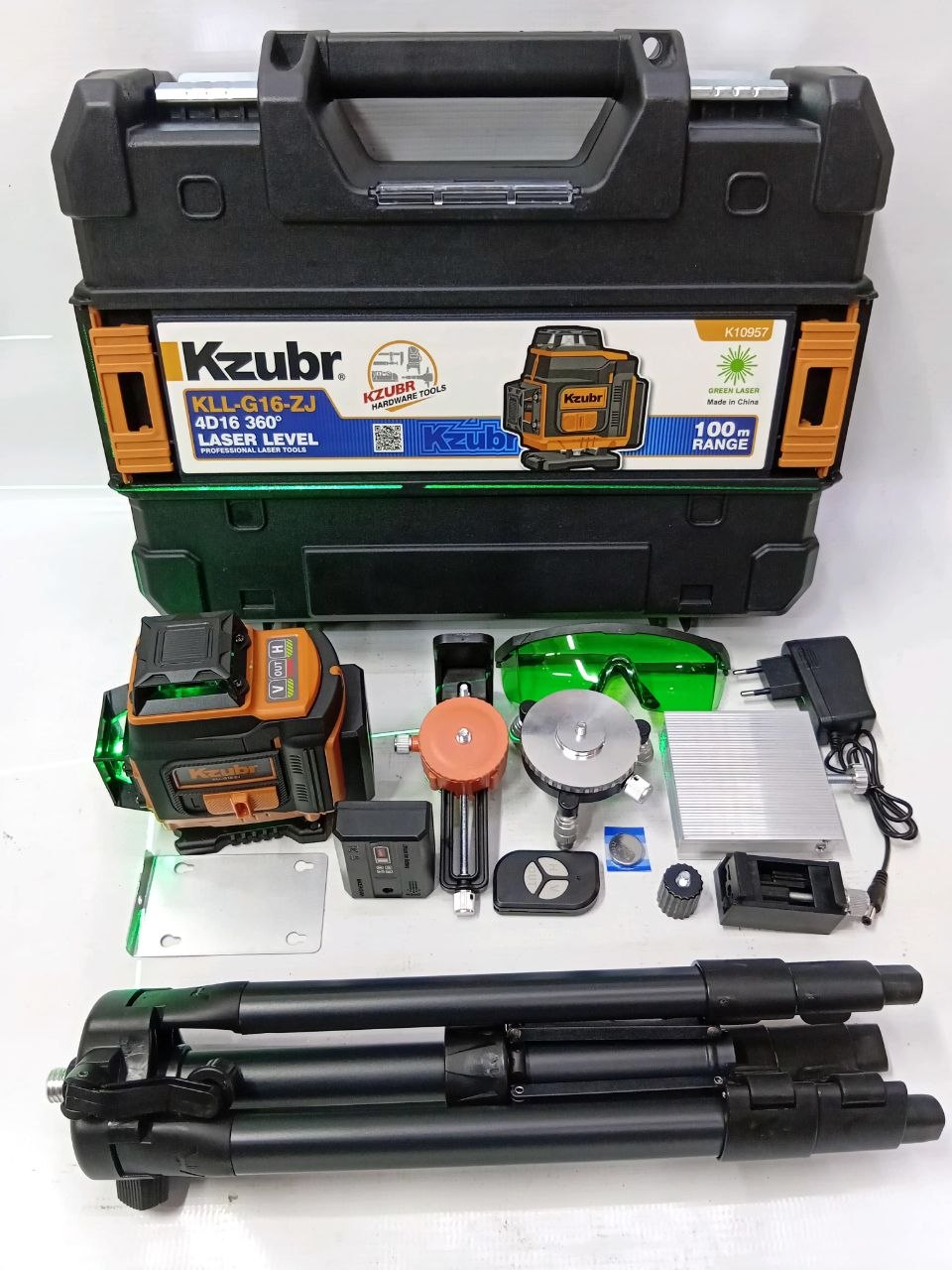

Kzubr KLL-G16-ZJ laser level kit

Key Technical Specifications

• Projection System: 4D 16-Line Technology. It simultaneously projects 4 independent 360-degree laser planes (2 horizontal planes and 2 vertical planes), offering absolute 360° coverage across the floors, walls, and ceilings of an entire room.

• Laser Beam Color: Vibrant Green (505–520 nm Wavelength). Green laser diodes are inherently more visible to the human eye (up to 4 times brighter) than traditional red lasers, allowing for crisp, clear visibility even in brightly lit spaces or near open building windows.

• Working Range: Capable of projecting visible lines up to 35 to 50 meters (and up to 100 meters under optimal low-light conditions or when paired with a digital laser receiver).

• Precision Index: Delivers razor-sharp leveling accuracy of $\pm1\text{ mm}$ at a 5-meter distance.

• Self-Leveling Capability: Built with a smart internal magnetic pendulum system. If placed on a slightly uneven surface (within a $\pm3^{\circ}$ to $4^{\circ}$ window), the tool automatically levels itself in under 15 seconds.

• Out-of-Level Warning: If the tool is tilted beyond its automatic compensating limit, it triggers a flashing visual line cue and an audible buzzer alert to prevent accidental unlevel layouts.
