Quality Die stock ½ to 1¼

A “die stock 1/2 to 1 1/4” refers to a manual pipe threading tool kit designed to cut external threads on pipes ranging from 1/2 inch to 1 1/4 inches in nominal pipe size (NPS).

This type of tool is essential for plumbers, pipefitters, and anyone working with threaded pipes where new threads need to be created or existing ones repaired.

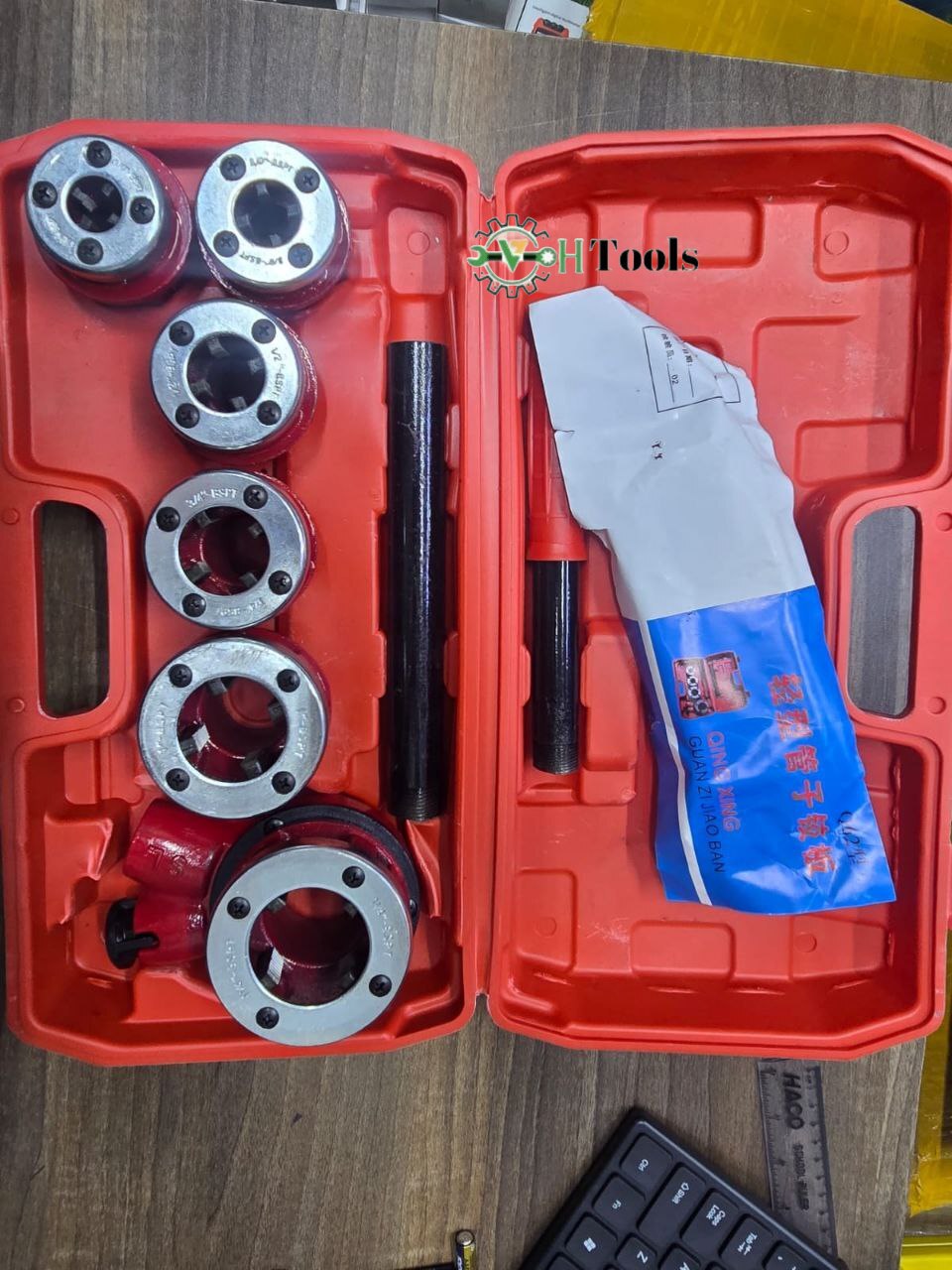

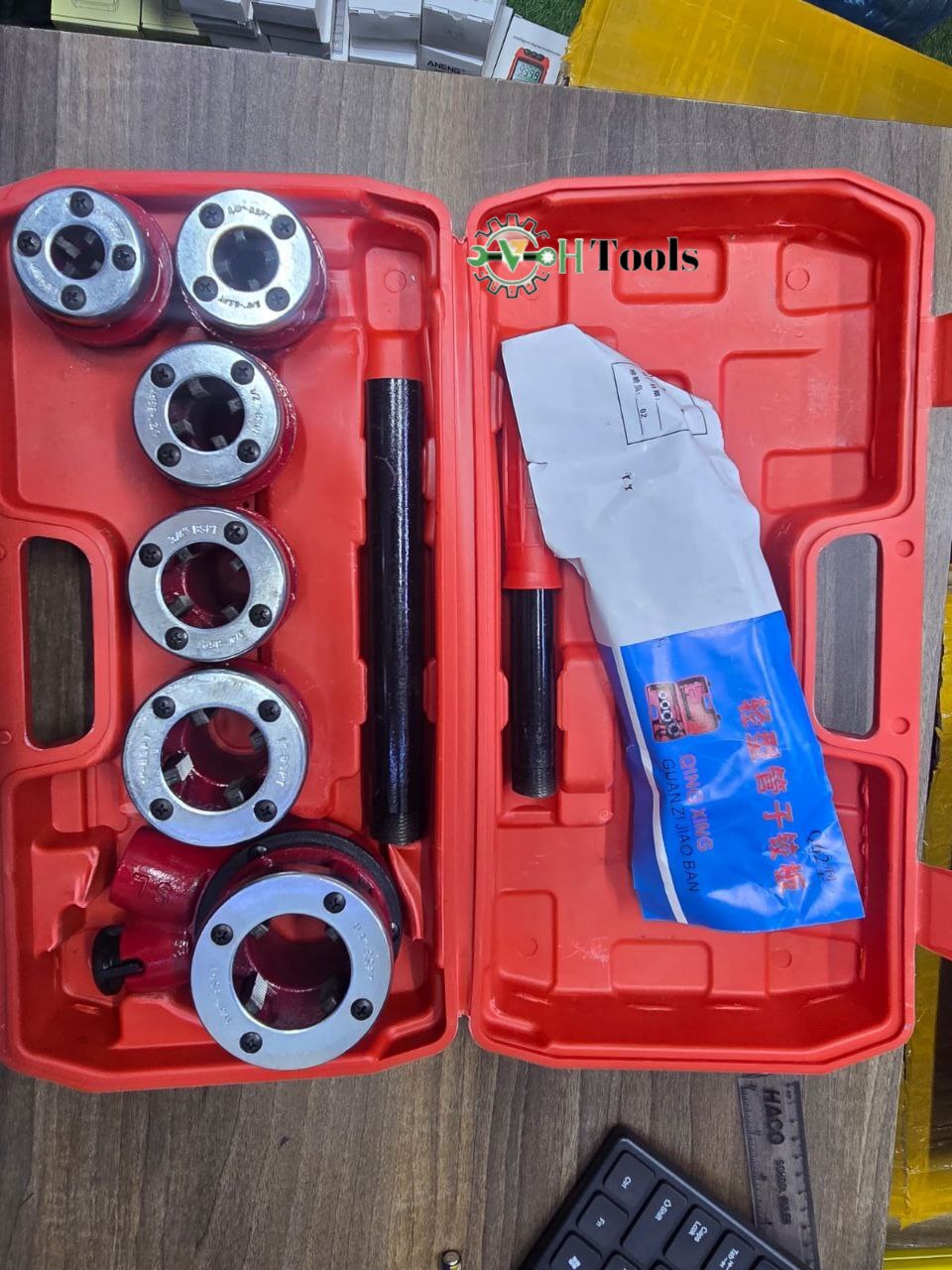

Components of a Die Stock Kit (1/2″ to 1 1/4″):

A typical kit will include:

1. Die Stock (or Die Holder / Ratchet Die Stock): This is the main body of the tool, essentially a handle that holds the individual dies. Many modern kits feature a ratcheting mechanism, which is a significant advantage. This allows you to thread pipes more easily in confined spaces, as you don’t need to rotate the handle a full 360 degrees. You can simply rock the handle back and forth while the die continues to cut.
2. Dies (or Die Heads): These are the actual cutting tools. For a “1/2 to 1 1/4” set, you would typically find four individual die heads, one for each size:
   • 1/2 inch (for 1/2″ nominal pipe)
   • 3/4 inch (for 3/4″ nominal pipe)
   • 1 inch (for 1″ nominal pipe)
   • 1 1/4 inch (for 1 1/4″ nominal pipe) Each die head is designed to cut a specific pipe thread standard, most commonly NPT (National Pipe Taper) for North America or BSPT (British Standard Pipe Taper) for other regions (like Kenya, where BSPT is common). Ensure the die set matches the thread standard you need.
3. Tubular Steel Handles: These are long, often two-piece handles that slot into the die stock to provide the necessary leverage for cutting threads.
4. Storage Case: A durable plastic or steel case to keep all components organized and protected.

How a Die Stock Works:

The process of threading a pipe manually with a die stock involves:

1. Pipe Preparation: The end of the pipe must be cut squarely, reamed (to remove burrs from the inside), and chamfered (to create a slight bevel on the outside edge). This prepares the pipe for the die to start cutting smoothly.
2. Securing the Pipe: The pipe must be held firmly, usually in a heavy-duty pipe vise, to prevent it from rotating during the threading process.
3. Applying Cutting Oil: Generously apply cutting oil (threading oil) to both the pipe end and the die. This is crucial for:
   • Reducing friction and heat buildup during cutting.
   • Allowing the die to cut cleanly.
   • Extending the life of the dies.
   • Washing away metal chips.
4. Starting the Thread: Place the correct size die head into the die stock. Position the die onto the end of the pipe, ensuring it’s square to the pipe. Apply downward pressure and start rotating the die stock clockwise (for right-hand threads, which are most common).
5. Cutting the Thread: Once the die starts to bite, continue rotating the die stock. For every 1-2 full turns clockwise, make a 1/4 to 1/2 turn counter-clockwise. This “chip-breaking” action helps to clear metal shavings (chips) from the die teeth, preventing them from jamming and ensuring a cleaner thread.
