Rotary Hammer

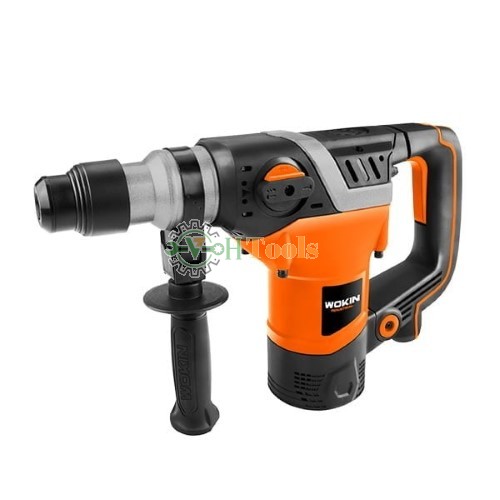

WOKIN ROTARY HAMMER – 1100w

The Wokin Rotary Hammer – 1100W is a powerful tool designed for various drilling and chiseling tasks. It is particularly effective in construction and renovation projects where robust performance is required. Below, I will detail its specifications, features, and accessories to provide a comprehensive understanding of this tool.

Specifications

1. Power and Voltage
   • The rotary hammer has an input power of 1100W, which allows it to perform heavy-duty tasks efficiently.
   • It operates at a rated voltage of 230V with a frequency of 50Hz.
2. Speed and Impact Rate
   • The no-load speed of the hammer is 770 revolutions per minute (RPM).
   • It boasts an impressive impact rate of 4200 beats per minute (bpm), making it suitable for penetrating tough materials.
3. Impact Energy
   • The impact energy generated by the hammer is 4.5 Joules (J), which contributes to its effectiveness in breaking through hard surfaces like concrete.
4. Drilling Capacity
   • The Wokin Rotary Hammer can drill through various materials with the following capacities:
     • Steel: up to 13mm
     • Concrete: up to 28mm
     • Wood: up to 45mm
5. Chuck Type
   • It features an SDS plus chuck, which allows for quick bit changes and secure holding during operation.
6. Plug and Cable
   • The tool comes with a VDE approved plug and cable measuring 2 meters, ensuring safety and compliance with electrical standards.

Accessories Included

The Wokin Rotary Hammer comes equipped with several essential accessories that enhance its functionality:

• 1 piece Point Chisel: dimensions of 14x250mm
• 1 piece Flat Chisel: dimensions of 14x250mm
• 3 pieces SDS-plus Drill Bits: sizes include 8x150mm, 10x150mm, and 12x150mm
• 1 pair Carbon Brushes
• 1 piece Auxiliary Handle for improved control during use
• 1 piece Dust Cover to keep the work area clean
• 1 bottle Lubricating Oil for maintaining the tool’s performance
• 1 piece Wrench for easy adjustments
• 1 piece Instruction Manual providing guidance on usage
