Name: Total TWP53706 4" Deep well pump 370W(0.5HP) 48M - Voh Tools
Price: 24500.00 KES
Availability: InStock

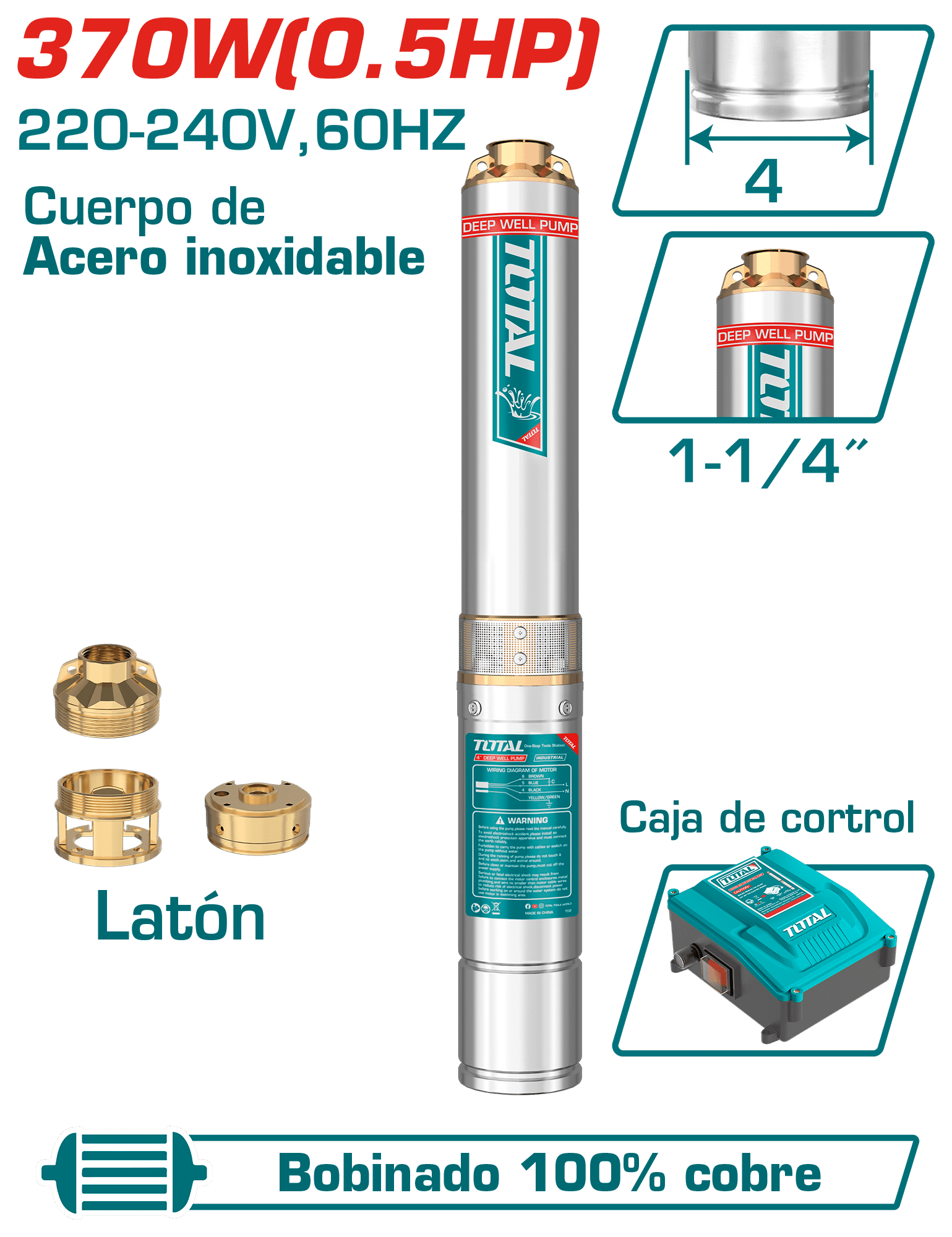

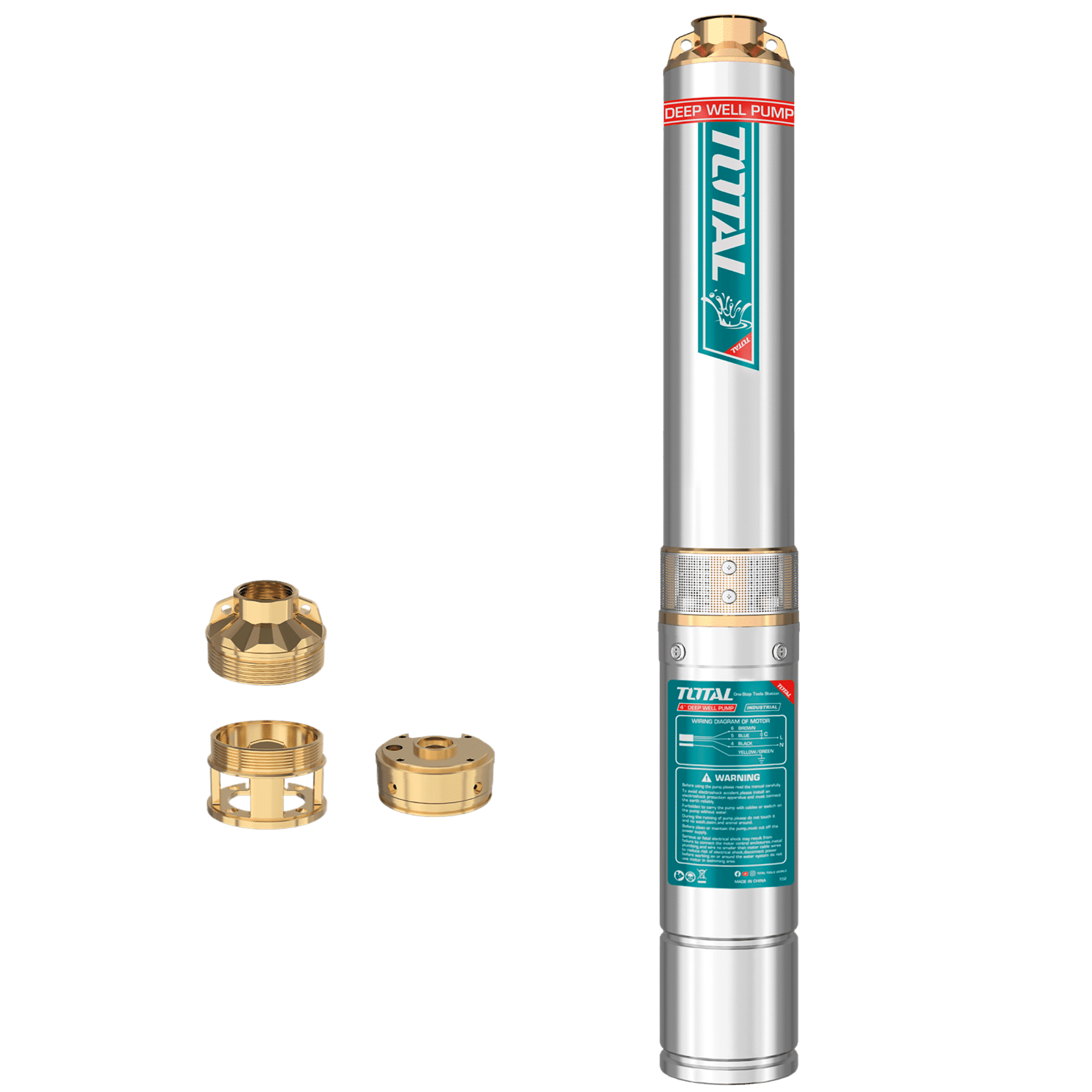

Total TWP53706 4″ Deep well pump 370W(0.5HP) 48M

KSh24,500.00

4″ Deep well pump
Voltage:220-240V~50Hz
Rated power:370W(0.5HP)
Max.head:48m
Max.flow:6.7m³/h
Pipe diameter:1-1/4″
Well pump body:4″
Impeller:6 stage
Copper wire motor
Outlet :Brass
Inlet: Brass
Oil chamber: Brass
Pump body:Stainless steel
20m length cable
1pcs control box
Packed by carton box

Key Technical Specifications

Parameter	Specification
Motor Power	370 W (0.5 HP)
Max Head Lift	48 Meters
Max Flow Rate	6.0 m³/hr (100 Liters/min)
Pump Diameter	4 Inches (fits 4″ or larger borehole casings)
Discharge Outlet	1-1/4″ (1.25 inches)
Stage Count	Multi-stage impeller system
Motor Winding	100% Copper Wire
Body Material	Stainless Steel Casing
Voltage / Frequency	220–240 V ~ 50 Hz

Core Features & Design

Stainless Steel Housing: Built with a corrosion-resistant, heavy-duty stainless steel pump body to withstand submerged continuous operation in deep well environments.
100% Copper Wire Motor: Oil-filled oil-cooled submersible motor with pure copper windings for better thermal efficiency and continuous duty performance.
Multi-Stage Impeller Assembly: Uses multiple floating impellers to build high pressure, efficiently pushing water up to a maximum head height of 48 meters.
Dedicated Control Box Included: Comes with an external control box featuring an ON/OFF switch, run capacitor, and thermal overload reset to safeguard the motor against voltage supply issues.
Integrated Check Valve: Built-in non-return valve at the outlet prevents backflow and water hammer damage when the pump shuts off.
